Thermo Fisher Scientific  >  9mm Insert Vials & Inserts

9mm Insert Vials & Inserts

Advanced Vial Closure System (AVCS)

브랜드 Thermo Fisher Scientific
제품특징

고품질 Glass

• 고품질의 1등급 가수분해 (1st hydrolytic class glass, type 1) 유리를 사용합니다.

• 특히, 프리미엄 투명 바이알 (Premium clear vial)은 33 expansion clear glass(type1, class A) 유리로 제조되고, 모든 미국, EU 및 일본 등 약전을 준수합니다.

• 실란화 바이알 (silanized vial, deactivated) 제공: 중요한 극성 화합물을 최적으로 회수하기 위해 사용

제품스펙

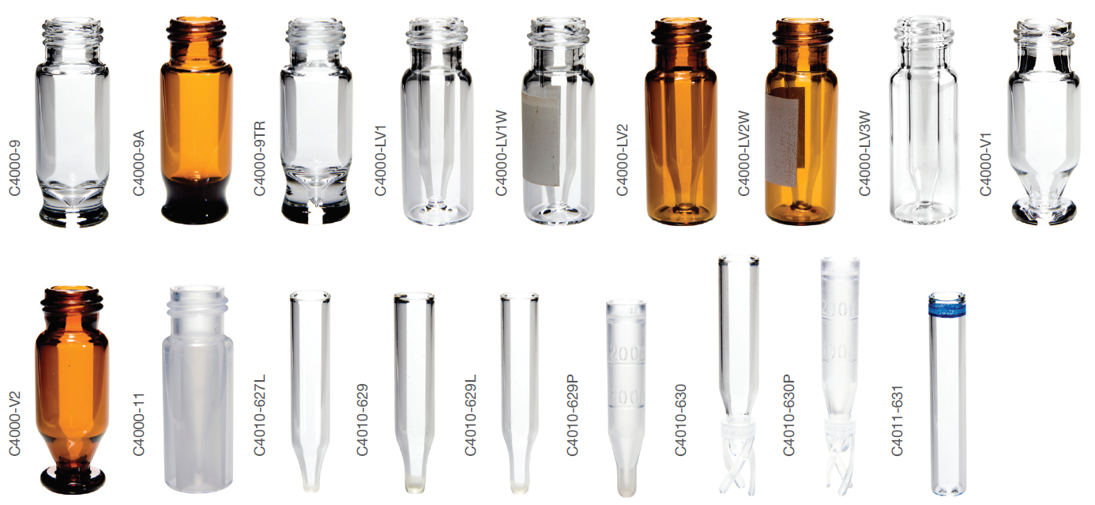

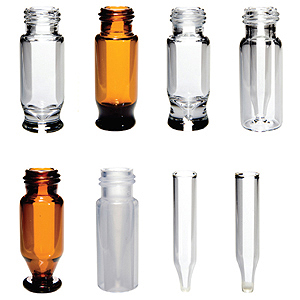

> Insert Vial

품명 Glass Patch Total Volume(μl) Usable Volume (μl) Residual (μl) 품번 포장단위(/Pack)








Fused Insert Vial

 Clear No 475 350 <2 C4000-LV1 100
Yes 475 350 <2 C4000-LV1W 100
Yes 375 240 <1 C4000-LV3W 100
Yes 300 250 <3 03-FISV 500
Amber No 475 350 <2 C4000-LV2 100
Yes 475 350 <2 C4000-LV2W 100
Yes 300 250 <3 03-FISV(A) 500
PP Vial Polypropylene No 400 300 <2 C4000-11 100

> Tapered Vial

품명 Glass Patch Total Volume (mL) Usable Volume (mL) Residual
(μl)		 품번 포장단위 (/Pack)
High Recovery with 30μL Reservoir Clear No 1.7 1.3 <4 C4000-9 100
Amber No 1.7 1.3 <4 C4000-9A 100
High Recovery, Silanized, with 30μL Reservoir Clear No 1.7 1.3 <4 C4000-S9 100
Total Recovery with 10μL Reservoir Clear No 1.7 1.2 <1 C4000-9TR 100
Micro-V Tapered with 150μL Reservoir Clear No 1.4 1.0 <4 C4000-V1 100
Amber No 1.4 1.0 <4 C4000-V2 100

> Insert & Shell

품명 Glass Dimension
(mm)		 Profile Total
Volume (mL)		 Usable
Volume (mL)		 Residual
(μl)		 품번 포장단위
(/Pack)
Insert Clear 6x31 Pulled Point 400μL 350μL <4 C4010-627L 100
Clear 6x29 Conical 375μL 300μL <1 C4010-629 100
Clear 6x31 Precision Point 400μL 350μL <2 C4010-629L 100
Polyspring Insert Clear 6x29 Conical 375μL 300μL <1 C4010-630 100
PP, Insert with Graduation Marks Polypropylene 6x30 Conical 325μL 250μL <2 C4010-629P 100
PP, Polyspring Insert Polypropylene 6x30 Conical 325μL 250μL <2 C4010-630P 100
Shell Clear 6x31 Flat Bottom 500μL 400μL <25 C4011-631 100
Silanized Insert Clear 6x29 Conical 375μL 300μL <1 C4010-S629 100
Silanized Polyspring Insert Clear 6x29 Conical 375μL 300μL <1 C4010-S630 100
Kimshield, Polyspring Insert Clear 6x29 Conical 375μL 300μL <1 C4010-K630 100
Silanized Shell Clear 6x31 Flat Bottom 500μL 400μL <25 C4011-S631 500





주요사항
프리미엄 (Premium)
유리 등급 (Glass Grade) 1st Hydrolytic Class Glass (Type 1)
Glass Type Clear: 33 Expansion
Amber: 51 Expansion
Dimension (for vial) 12 x 32 mm

> 호환 Closure

Septum 품번 포장단위 (/Pack)






9 mm Screw Cap

 Rubber/PTFE C5000-51B 100
Silicone/PTFE C5000-54B 100
Silicone/PTFE, Pre-slit C5000-55B 100
Silicone/PTFE CHSC9-30 100
Silicone/PTFE, Pre-slit CHSC9-40 100

*다른 규격의 cap, septum은 별도 문의 요망
